750-1417 | WAGO

Input module for 750 series, Inputs: 8, (W x H x D) 12 x 100 x 69 mm, 750-1417

Order No.: 44P5181
EAN: 4050821085645
MPN:
750-1417
Series: 750

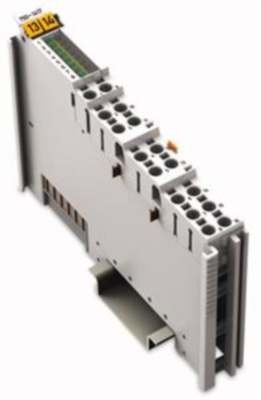

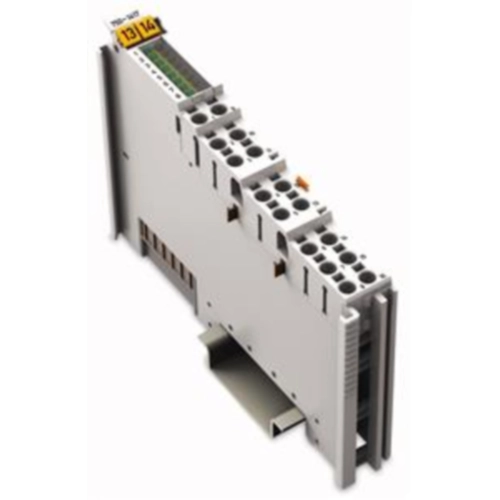

750-1417 WAGO Digital modules Image 1
750-1417 WAGO Digital modules Image 2
750-1417 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
80.5511 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
80.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
80.5511 €

Digital input, 750-1417, WAGO

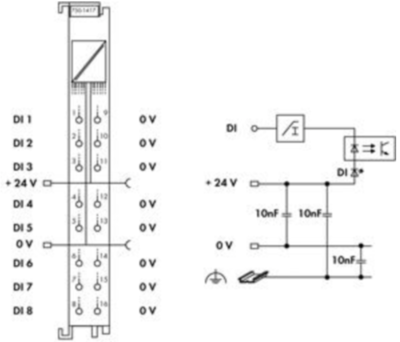

8-channel digital input, 24 VDC, 3 ms, Low-side switching, 2-conductor connection.

Features

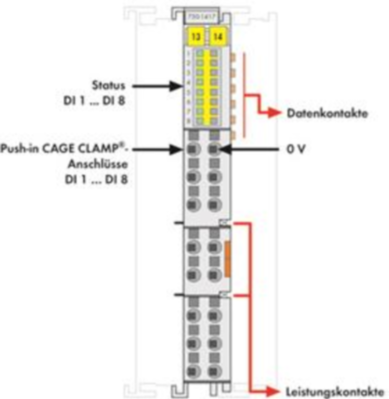

  • This digital input module is a 2-wire device featuring eight channels in a width of just 12 mm
  • It receives binary control signals from digital field devices (e.g., sensors, encoders, switches or proximity sensors)
  • The module features Push-in CAGE CLAMP connections enabling solid conductors to be connected by simply pushing them in
  • Each input channel has a noise-rejection RC filter with 3.0 ms time constant
  • A green LED indicates the signal state of each channel
  • Field and system levels are electrically isolated
Technical specifications
Depth 69 mm
Assembly DIN rail
Number of digital inputs 8
Width 12 mm
Height 100 mm
Version input module
Suitable for 750 series
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead, lead monoxide (lead oxide)
SVHC free No
RoHS conform Yes
