893-2002 | WAGO

Socket, 2 pole, snap-in, push-wire connection, gray, 893-2002

Order No.: 09P0176
EAN: 4045454420130
MPN:
893-2002
Series: WINSTA KNX

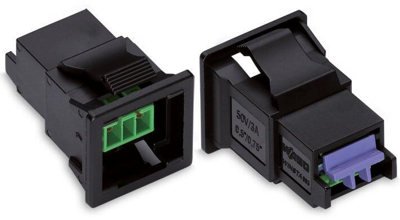

893-2002 WAGO Device Connectors Image 1
893-2002 WAGO Device Connectors Image 2
893-2002 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
9.9127 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
9.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.9127 €

Socket, 893-2002, WAGO

The 893-2002 is a connector/socket that is a pluggable solution for your application in control cabinets, on PCBs or for lighting connections. This pluggable installation connector with spring pressure connection technology work completely without screw connections.

Features

  • Saves time, since no wiring is required at the construction site
  • Ready to install and use immediately
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage IEC 50 V
Pin number 2 pole
Colour gray
Connection push-wire connection
Assembly snap-in
Pin temperature 85 °C
Design straight
Rated current IEC 3 A
Type of locking No
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin CH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
