890-813 | WAGO

Plug, 3 pole, black, 890-813

Order No.: 43P2724
EAN: 4050821695509
MPN:
890-813
Series: WINSTA MINI
890-813 WAGO Device Connectors Image 1
890-813 WAGO Device Connectors Image 2
890-813 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.2372 €

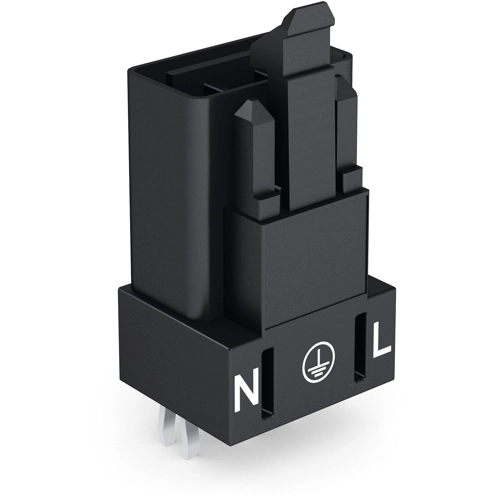

Plug, 890-813, WAGO

The 890-813 is a connector/plug that is compact but high-quality PCB-terminals block. It offers convenient operation and the greatest flexibility for installation.

Features

  • Protection against mismating
  • Quick replacement of defective units during ongoing operation
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Product type plug
Rated voltage IEC 250 V
Pin number 3 pole
Rated current UL/CSA 14 A
Rated voltage UL/CSA 600 V
Type of locking Yes
Design straight
Rated current IEC 16 A
Colour black
Pin temperature 85 °C
Logistics
Property Value
Customs tariff number 39269097
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
