890-812 | WAGO

Plug, 2 pole, black, 890-812

Order No.: 43P2720
EAN: 4050821695493
MPN:
890-812
Series: WINSTA MINI
890-812 WAGO Device Connectors Image 1
890-812 WAGO Device Connectors Image 2
890-812 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.0706 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.0706 €

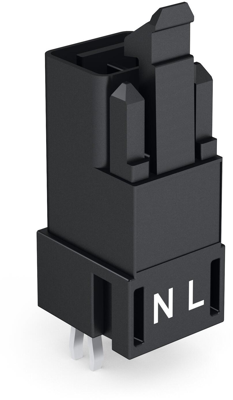

Plug, 890-812, WAGO

The 890-812 is a connector/plug that is compact but high-quality PCB-terminals block. It offers convenient operation and the greatest flexibility for installation.

Features

  • Protection against mismating
  • Quick replacement of defective units during ongoing operation
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Colour black
Rated current UL/CSA 14 A
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
