890-812/011-000 | WAGO

Plug, 2 pole, black, 890-812/011-000

Order No.: 43P2722
EAN: 4050821695684
MPN:
890-812/011-000
Series: WINSTA MINI

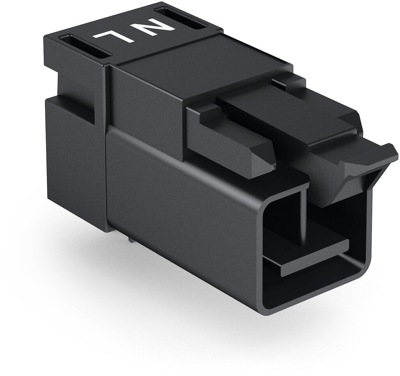

890-812/011-000 WAGO Device Connectors Image 1
890-812/011-000 WAGO Device Connectors Image 2
890-812/011-000 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.0706 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.0706 €

Plug, 890-812/011-000, WAGO

The 890-812/011-000 is a connector/plug which is a pluggable PCB connector with spring pressure connection technology and Push-in CAGE CLAMP technology that allows maintenance free terminal connections.

Features

  • Protection against mismating
  • Quick replacement of defective units during ongoing operation
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Colour black
Rated current UL/CSA 14 A
Pin temperature 85 °C
Design angled
Rated current IEC 16 A
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 39269097
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
