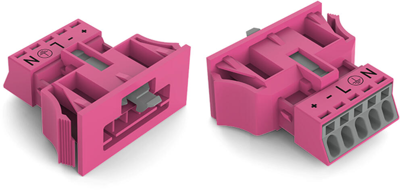

Plug, 5 pole, snap-in, push-in, 1.5 mm², pink, 890-795/082-000
Snap-in plug, 890-795/082-000, WAGO
The WINSTA MINI male connector/plug with protection type IP20. WAGO pluggable installation connectors can be used when specifications repeat or are planned on a specified grid, for example for installing grid lighting or flush-mount lighting. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. B coding enables the WINSTA MINI pluggable installation connectors to be used for application control in automation, mechanical engineering, and robotics. It saves space, and, thanks to Push-in CAGE CLAMP spring pressure connection technology, it also saves time, as the connection is low-maintenance and can be performed without screw connections.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too!
Features
- Effective protection against mismating
- Consistent IP40 protection
- With B coding for use in automation of processes, such as lighting technology

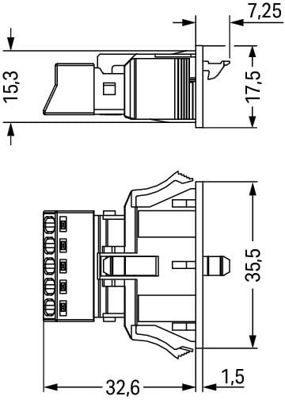

- Exact dimensions
- Quick replacement of defective units during ongoing operation
| Connection | Push-in | |
| Version | Stecker | |
| Design | gerade | |
| Colour | pink | |
| Cable cross-section | 1,5 mm² | |
| Assembly | Snap-in | |
| Rated voltage IEC | 400 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 12 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 5-polig | |
| Fuse holder present | No | |
| Type of locking | Ja |
| Country of origin | PL |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
