890-782 | WAGO

Socket, 2 pole, snap-in, push-in, 0.25-1.5 mm², gray, 890-782

Order No.: 09P0175
EAN: 4055143428118
MPN:
890-782
Series: WINSTA MINI

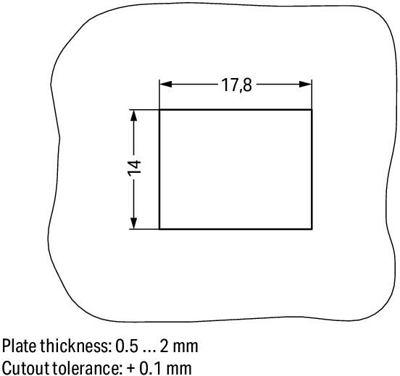

890-782 WAGO Device Connectors Image 1

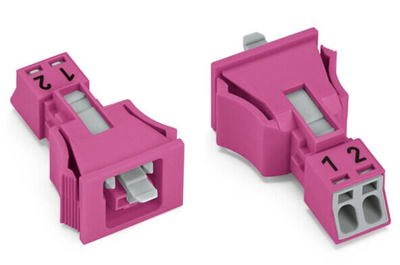

890-782 WAGO Device Connectors Image 2

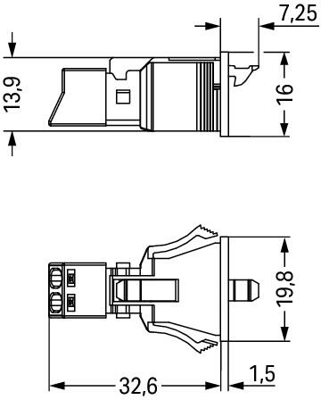

890-782 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
3.1416 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.1416 €

Socket, 890-782, WAGO

The 890-782 is a connector/socket that supports fast and a reliable installation. It is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to make connections according to an enormous variety of requirements in next to no time.

Features

  • Protection against mismating
  • Convenient installation and commissioning
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For data networks
  • For lighting applications
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Colour gray
Rated current UL/CSA 12 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Assembly snap-in
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Type of locking Yes
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
