890-765 | WAGO

Socket, 5 pole, snap-in, push-in, 0.25-1.5 mm², light green, 890-765

Order No.: 45P3028
EAN: 4055143235945
MPN:
890-765
Series: WINSTA MINI

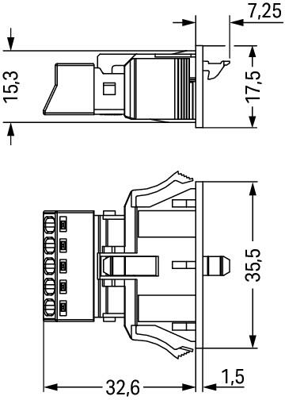

890-765 WAGO Device Connectors Image 1

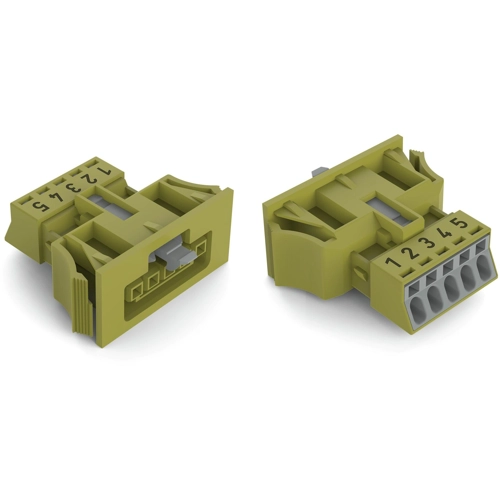

890-765 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.5097 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.5097 €

Socket, 890-765, WAGO

The 890-765 is a connector/socket with locking latch that is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to establish connections according to an enormous variety of requirements in no time flat.

Features

  • Protection against mismating
  • Convenient installation and commissioning
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Rated voltage IEC 400 V
Pin temperature 85 °C
Colour light green
Assembly snap-in
Rated voltage UL/CSA 600 V
Rated current UL/CSA 12 A
Design straight
Connection push-in
Product type socket
Pin number 5 pole
Type of locking Yes
Rated current IEC 16 A
Cable cross-section 0.25-1.5 mm²
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
