890-753/062-000 | WAGO

Plug, 3 pole, snap-in, push-in, 0.25-1.5 mm², gray, 890-753/062-000

Order No.: 45P3012
EAN: 4055143427906
MPN:
890-753/062-000
Series: WINSTA MINI

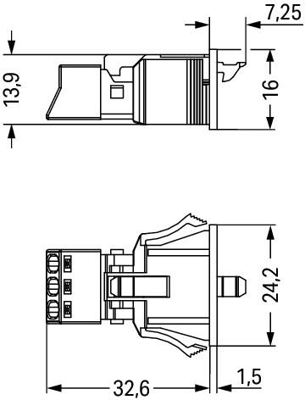

890-753/062-000 WAGO Device Connectors Image 1

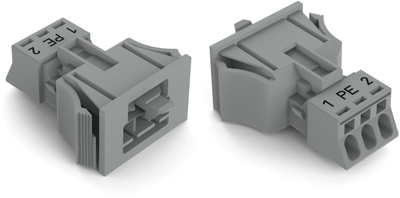

890-753/062-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.6414 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.6414 €

Plug, 890-753/062-000, WAGO

The 890-753/062-000 is a connector/plug with locking latch. This pluggable installation connector with spring pressure connection technology functions without screw connections.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
  • For data networks
Technical specifications
Filter Property Value
Connection push-in
Product type plug
Rated voltage IEC 250 V
Pin number 3 pole
Cable cross-section 0.25-1.5 mm²
Rated current UL/CSA 14 A
Assembly snap-in
Rated voltage UL/CSA 600 V
Type of locking Yes
Design straight
Rated current IEC 16 A
Colour gray
Pin temperature 85 °C
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
