890-745 | WAGO

Socket, 5 pole, snap-in, push-in, 0.25-1.5 mm², gray, 890-745

Order No.: 45P3005
EAN: 4055143427647
MPN:
890-745
Series: WINSTA MINI

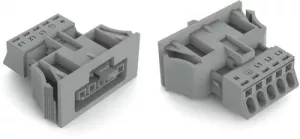

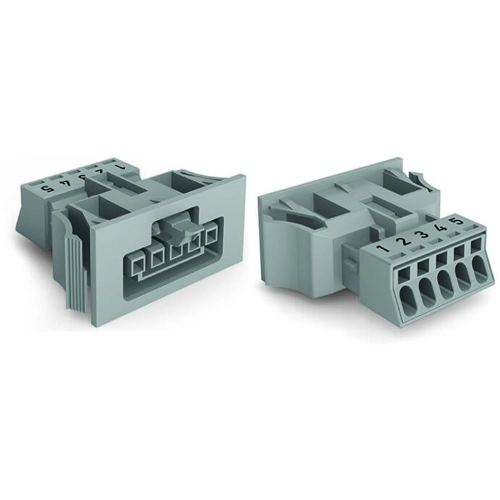

890-745 WAGO Device Connectors Image 1
890-745 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.9016 € *
Available: 38 pcs.
Total Price:
7.90 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9016 €
10 pcs.
7.2590 €
50 pcs.
6.6045 €
100 pcs.
5.9500 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket, 890-745, WAGO

The 890-745 is a connector/socket that is a pluggable solution for your use in control cabinets, on PCBs or for lighting connections.

Features

  • Protection against mismating
  • Convenient installation and commissioning
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 400 V
Pin number 5 pole
Colour gray
Rated current UL/CSA 12 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Assembly snap-in
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Type of locking Yes
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
