890-744/064-000 | WAGO

Socket, 4 pole, snap-in, push-in, 0.25-1.5 mm², gray, 890-744/064-000

Order No.: 45P3004
EAN: 4055143428033
MPN:
890-744/064-000
Series: WINSTA MINI

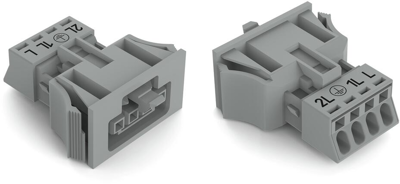

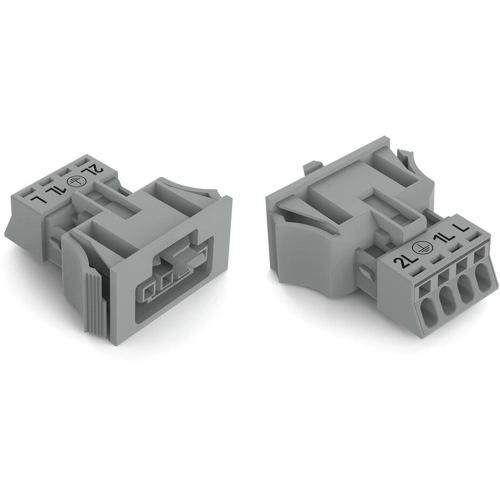

890-744/064-000 WAGO Device Connectors Image 1
890-744/064-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.3911 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.3911 €

Socket, 890-744/064-000, WAGO

The 890-744/064-000 is a connector/socket that provides the foundation for installation of solid and fine-stranded conductors.

Features

  • Protection against mismating
  • Quick replacement of defective units during ongoing operation
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For automation controllers
  • For Robotic applications
Technical specifications
Colour gray
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 12 A
Assembly snap-in
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Rated voltage IEC 400 V
Cable cross-section 0.25-1.5 mm²
Pin number 4 pole
Version socket
Design straight
Connection push-in
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
