890-705/006-000 | WAGO

Socket, 5 pole, snap-in, push-in, 0.25-1.5 mm², black, 890-705/006-000

Order No.: 45P2982
EAN: 4050821312253
MPN:
890-705/006-000
Series: WINSTA MINI

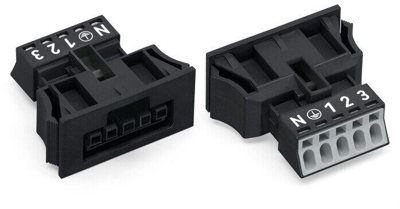

890-705/006-000 WAGO Device Connectors Image 1
890-705/006-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.5815 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.5815 €

Socket, 890-705/006-000, WAGO

The 890-705/006-000 is a connector/socket that supports fast and a reliable installation. It is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to make connections according to an enormous variety of requirements in next to no time.

Features

  • Protection against mismating
  • Quick replacement of defective units during ongoing operation
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Connection push-in
Product type socket
Rated voltage IEC 400 V
Pin number 5 pole
Cable cross-section 0.25-1.5 mm²
Rated current UL/CSA 12 A
Assembly snap-in
Rated voltage UL/CSA 600 V
Type of locking Yes
Design straight
Rated current IEC 16 A
Colour black
Pin temperature 85 °C
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
