890-684 | WAGO
H-distributor, 3 pole, white, 890-684
Unit Price (€ / pc.)
7.735 € *
Standard delivery time from the manufacturer is: 4 Weeks

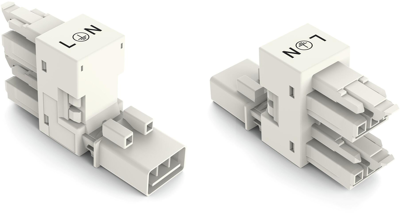

H-distributor, 890-684, WAGO
H-distribution connector, 3-pole, code A, 1 input, 2 outputs, outputs on one side, 2 locking levers, white.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Rated current UL/CSA | 14 A | |
| Pin temperature | 85 °C | |
| Design | straight | |
| Colour | white | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | H-distributor | |
| Rated current IEC | 16 A | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
