890-3112 | WAGO

Plug, 2 pole, snap-in, spring-clamp connection, blue, 890-3112

Order No.: 45P2941
EAN: 4055143272575
MPN:
890-3112
Series: WINSTA MINI

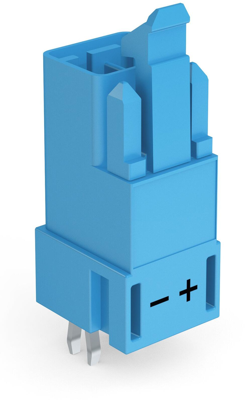

890-3112 WAGO Device Connectors Image 1

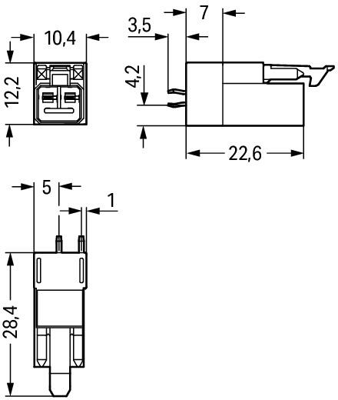

890-3112 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.0349 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.0349 €

Plug, 890-3112, WAGO

Plug for PCBs, straight, 2-pole, code I, blue.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Colour blue
Rated current UL/CSA 14 A
Connection spring-clamp connection
Assembly snap-in
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
