890-295/082-000 | WAGO

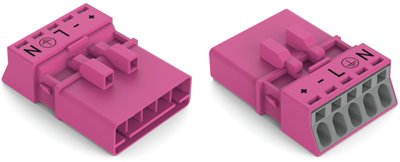

Plug, 5 pole, spring-clamp connection, 0.25-1.5 mm², pink, 890-295/082-000
Unit Price (€ / pc.)
4.3554 € *
Standard delivery time from the manufacturer is: 4 Weeks
Plug, 890-295/082-000, WAGO
The 890-295/082-000 is a connector/plug which is a pluggable installation connector that is useful when criteria repeat or are planned on a specified pattern.
Features
- Protection against mismating
- Quick replacement of defective units during ongoing operation
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Applications
- For lighting applications
- For automation controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Rated voltage IEC | 400 V | |
| Pin number | 5 pole | |
| Colour | pink | |
| Rated current UL/CSA | 12 A | |
| Cable cross-section | 0.25-1.5 mm² | |
| Connection | spring-clamp connection | |
| Pin temperature | 85 °C | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Type of locking | Yes | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
