890-295/080-000 | WAGO

Plug, 5 pole, spring-clamp connection, 0.25-1.5 mm², pink, 890-295/080-000

Order No.: 45P2931
EAN: 4055143500128
MPN:
890-295/080-000
Series: WINSTA MINI

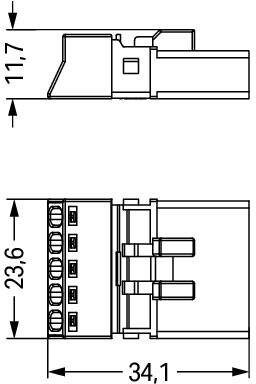

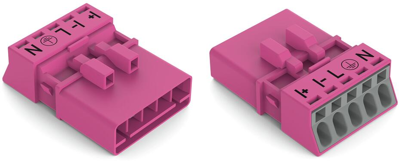

890-295/080-000 WAGO Device Connectors Image 1
890-295/080-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.3554 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.3554 €

Plug, 890-295/080-000, WAGO

The 890-295/080-000 is a connector/plug that provides the foundation for installation of solid and fine-stranded conductors. It is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to establish connections according to an enormous variety of requirements in no time flat.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated current UL/CSA 12 A
Cable cross-section 0.25-1.5 mm²
Pin temperature 85 °C
Design straight
Colour pink
Pin number 5 pole
Rated voltage IEC 400 V
Product type plug
Rated current IEC 16 A
Type of locking Yes
Connection spring-clamp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
