890-294/081-000 | WAGO
Plug, 4 pole, spring-clamp connection, 0.25-1.5 mm², pink, 890-294/081-000
Unit Price (€ / pc.)
3.9389 € *
Standard delivery time from the manufacturer is: 4 Weeks
Plug, 890-294/081-000, WAGO

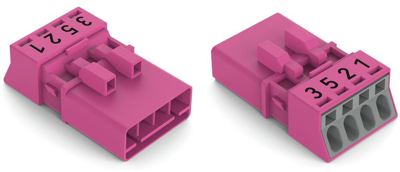

Plug, 4-pole, 1.50 mm², pink.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current IEC | 16 A | |
| Rated voltage UL/CSA | 600 V | |
| Connection | spring-clamp connection | |
| Rated voltage IEC | 400 V | |
| Pin temperature | 85 °C | |
| Product type | plug | |
| Rated current UL/CSA | 12 A | |
| Type of locking | Yes | |
| Pin number | 4 pole | |
| Design | straight | |
| Colour | pink | |
| Cable cross-section | 0.25-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
