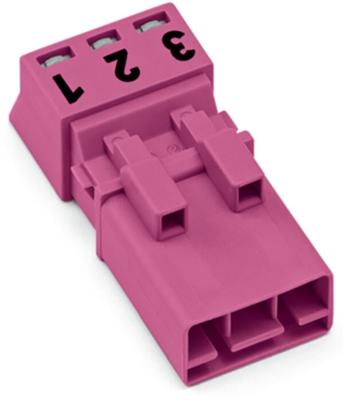

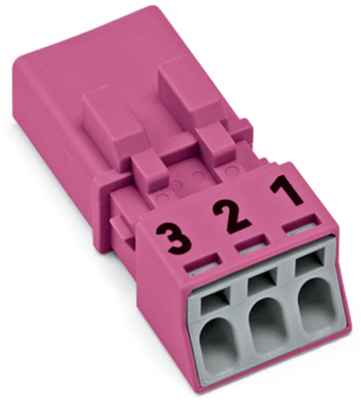

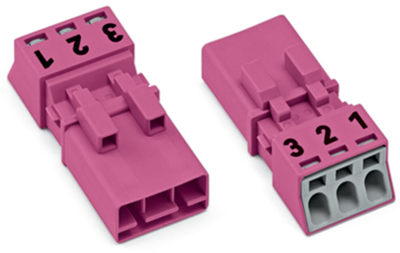

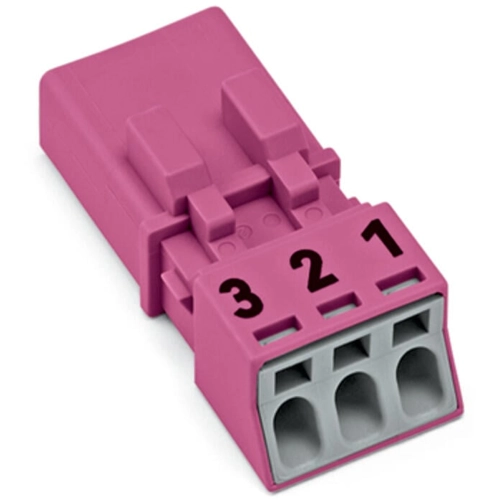

Plug, 3 pole, push-in, 1.5 mm², pink, 890-293
Male connector, 890-293, WAGO
With the WINSTA MINI male connector/plug B coding, the pluggable installation connectors with spring pressure connection technology function entirely without screw connections. They allow fast, efficient, error-free installation in a wide range of applications. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. Solutions like the WINSTA MINI pluggable installation connectors with B coding are suitable for applications involving process control, such as for lighting or in data networks. Particularly where space is tight, the smallest pluggable connection system, WINSTA MINI, conveniently displays its advantages. It is very compact, and, thanks to Push-in CAGE CLAMP spring pressure connection technology, it also saves time, since the connection is low-maintenance and can be performed without screw connections.
WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It offers error-free installation of cables and components, quickly and reliably. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too!
Features
- Effective protection against mismating
- Consistent IP40 protection
- With B coding for controllers lighting fixtures and sun blinds
- Ready to install and use immediately
- Convenient installation and commissioning
| Filter | Property | Value |
|---|---|---|
| Colour | pink | |
| Connection | push-in | |
| Rated current IEC | 16 A | |
| Pin number | 3 pole | |
| Product type | plug | |
| Rated current UL/CSA | 14 A | |
| Fuse holder present | No | |
| Switch illuminated | No | |
| Line filter present | No | |
| Type of locking | Yes | |
| Power switch available | No | |
| Rated voltage UL/CSA | 600 V | |
| Cable cross-section | 1.5 mm² | |
| Design | straight | |
| Rated voltage IEC | 250 V |
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
