890-293/081-000 | WAGO

Plug, 3 pole, push-in, 1.5 mm², pink, 890-293/081-000

Order No.: 45P8151
EAN: 4055143500029
MPN:
890-293/081-000
Series: WINSTA MINI

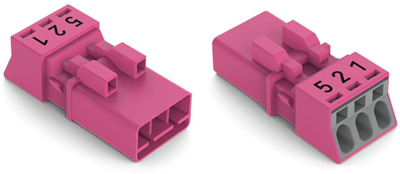

890-293/081-000 WAGO Device Connectors Image 1
890-293/081-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.1650 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1650 €
10 pcs.
3.8318 €
50 pcs.
3.4510 €
100 pcs.
3.0464 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 890-293/081-000, WAGO

The WINSTA MINI male connector/plug with protection type IP20 supports rapid, correct installation. The pluggable installation connectors with spring pressure connection technology function without screw connections. They allow fast, efficient, error-free installation in numerous possible uses. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. B coding enables the WINSTA MINI pluggable installation connectors to be used for control in applications within automation, robotics, and mechanical engineering. WINSTA MINI follows the trend toward miniaturisation. The smallest pluggable connection system is particularly well-suited for lights, for example, since LED technology requires much less space for connection technology.

The WINSTA Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, more reliable, and error-free. Using this pre-assembled system reduces time spent on assembly and minimizes errors during installation at the construction site.

Features

  • Effective protection against mismating
  • Easy tool-free operation, a wide range of coding options
  • With B coding for use in process automation, such as lighting technology
  • Ready to install and use immediately
  • Quick replacement of defective units during ongoing operation
Technical specifications
Switch illuminated No
Colour pink
Type of locking Yes
Rated current UL/CSA 14 A
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Rated voltage IEC 250 V
Fuse holder present No
Cable cross-section 1.5 mm²
Pin number 3 pole
Version plug
Design straight
Power switch available No
Connection push-in
Line filter present No
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
