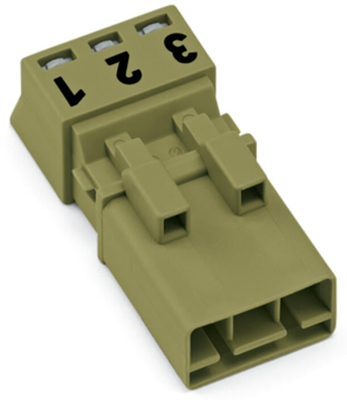

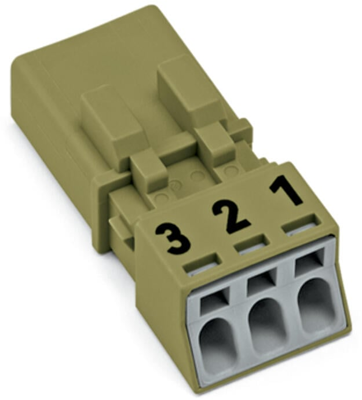

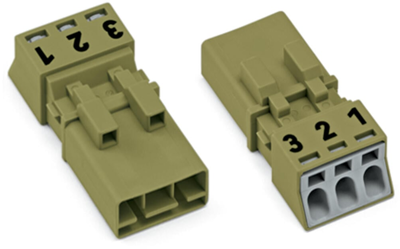

Plug, 3 pole, push-in, 1.5 mm², light green, 890-273
Male connector, 890-273, WAGO
With the WINSTA MINI male connector/plug with protection type IP20, WAGO pluggable installation connectors can be used when criteria repeat or are planned on a specific pattern, for example, for installing grid lighting or flush-mount lighting. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. It saves space, and, thanks to Push-in CAGE CLAMP spring pressure connection technology, it can be installed quickly, since the installation is low-maintenance and requires no screw connections.
WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It ensures fast, secure, and, above all, error-free installation of components and cables. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too!
Features
- Pluggable installation connectors with protection against mismating
- Easy tool-free operation, a wide range of coding options
- For automation controllers
- Ready to install and use immediately
- Fast, secure installation
| Filter | Property | Value |
|---|---|---|
| Connection | push-in | |
| Product type | plug | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Line filter present | No | |
| Power switch available | No | |
| Cable cross-section | 1.5 mm² | |
| Rated current UL/CSA | 14 A | |
| Rated voltage UL/CSA | 600 V | |
| Type of locking | Yes | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Colour | light green | |
| Switch illuminated | No | |
| Fuse holder present | No |
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
