890-265/073-000 | WAGO

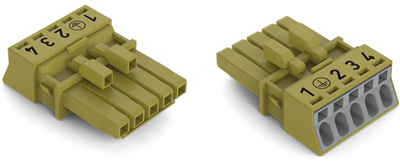

Socket, 5 pole, push-in, 1.5 mm², light green, 890-265/073-000
Female connector, 890-265/073-000, WAGO
The WINSTA MINI female connector/socket with protection type IP20 is the pluggable solution for your application in control cabinets, for lighting connections, or on PCBs. Our pluggable installation connectors with spring pressure connection technology work completely without screw connections. They allow resource-efficient, error-free installation in numerous possible uses. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. Especially where space is tight, our smallest pluggable connection system, WINSTA MINI, consistently displays its advantageous properties. It is very compact, and, with Push-in CAGE CLAMP spring pressure connection technology, it can also be installed quickly, as the installation is low-maintenance and can be performed without screw connections.
The WINSTA Pluggable Connection System is ideally tailored to the strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, more reliable, and error-free. Using this pre-assembled system reduces assembly times and installation errors at the construction site.
Features
- Pluggable installation connectors with protection against mismating
- Consistent IP40 protection
- With B coding for controllers lighting fixtures and sun blinds
- Ready for immediate use
- Convenient installation and commissioning
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 16 A | |
| Rated voltage UL/CSA | 600 V | |
| Connection | push-in | |
| Rated voltage IEC | 400 V | |
| Switch illuminated | No | |
| Product type | socket | |
| Rated current UL/CSA | 12 A | |
| Type of locking | Yes | |
| Pin number | 5 pole | |
| Power switch available | No | |
| Line filter present | No | |
| Design | straight | |
| Colour | light green | |
| Cable cross-section | 1.5 mm² |
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
