890-264 | WAGO

Socket, 4 pole, push-in, 1.5 mm², light green, 890-264

Order No.: 45P8136
EAN: 4055143523622
MPN:
890-264
Series: WINSTA MINI

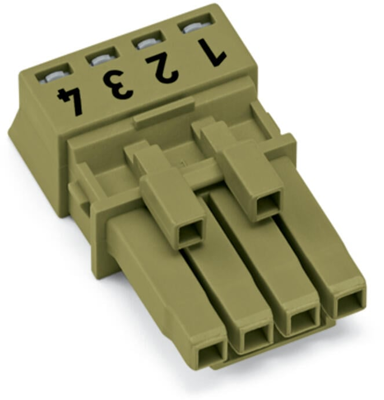

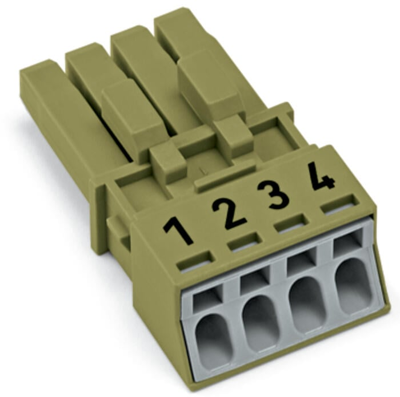

890-264 WAGO Device Connectors Image 1
890-264 WAGO Device Connectors Image 2
890-264 WAGO Device Connectors Image 3
890-264 WAGO Device Connectors Image 4
Image may differ
Unit Price (€ / pc.)
6.1880 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1880 €
10 pcs.
5.6882 €
50 pcs.
5.1884 €
100 pcs.
4.6648 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, 890-264, WAGO

The WINSTA MINI female connector/socket B coding. On PCBs, in control cabinets, or for connecting lights - pluggable installation connectors from WAGO allow you to make connections according to a huge variety of requirements in no time flat. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. Pluggable installation connectors with B coding from the WINSTA MINI line are available in pink, light green, or gray, allowing you to distinguish different circuits, for example, for pumps, lighting, or sun blinds. Your own pole marking is possible, too. Especially where space is tight, our smallest pluggable connection system, WINSTA MINI, consistently displays its advantages. It saves space, and, thanks to Push-in CAGE CLAMP spring pressure connection technology, it can additionally be installed quickly, since the connection is low-maintenance and requires no screw connections.

WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It offers error-free installation of cables and components, quickly and reliably. Now you can also reduce installation costs without compromising safety and quality: with protection type IP20, it eliminates the need for servicing and prevents unnecessary downtime.

Features

  • Effective protection against mismating
  • Easy tool-free operation, a wide range of coding options
  • With B coding for controllers, for example sun blinds and lighting fixtures
  • Custom-engineered solutions
  • Convenient installation and commissioning
Technical specifications
Filter Property Value
Connection push-in
Product type socket
Rated voltage IEC 400 V
Pin number 4 pole
Line filter present No
Power switch available No
Cable cross-section 1.5 mm²
Rated current UL/CSA 12 A
Rated voltage UL/CSA 600 V
Type of locking Yes
Design straight
Rated current IEC 16 A
Colour light green
Switch illuminated No
Fuse holder present No
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
