890-263 | WAGO

Socket, 3 pole, push-in, 0.25-1.5 mm², green, 890-263

Order No.: 45P2912
EAN: 4055143499972
MPN:
890-263
Series: WINSTA MINI

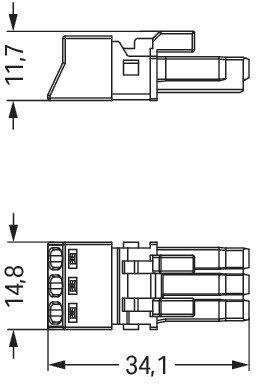

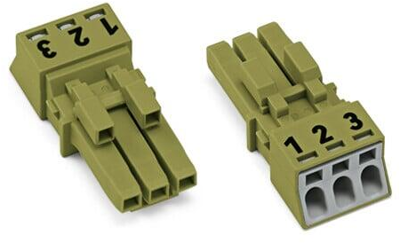

890-263 WAGO Device Connectors Image 1
890-263 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.7961 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.7961 €

Socket, 890-263, WAGO

Socket, 3-pole, code B, 1.50 mm², light green.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 3 pole
Colour green
Rated current UL/CSA 14 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Type of locking Yes
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
