890-262 | WAGO

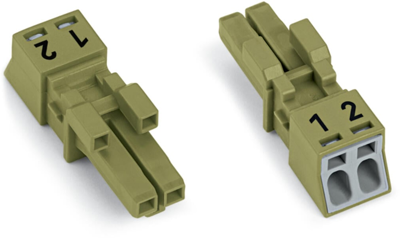

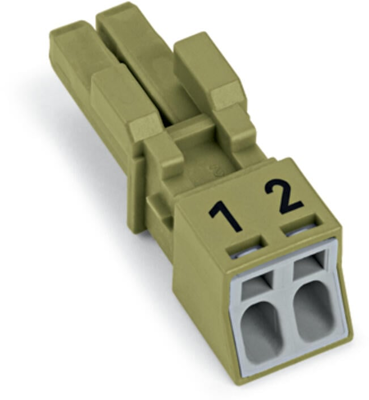

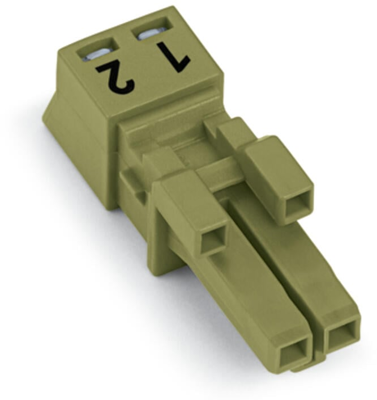

Socket, 2 pole, push-in, 1.5 mm², light green, 890-262
Female connector, 890-262, WAGO
The WINSTA MINI female connector/socket with protection type IP20 supports rapid, correct installation. Whether on PCBs, in control cabinets, or for connecting lights - pluggable installation connectors from WAGO allow you to establish connections according to many different requirements in seconds. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. Where space is tight, the smallest pluggable connection system, WINSTA MINI, consistently displays its strengths. It saves space, and, thanks to Push-in CAGE CLAMP spring pressure connection technology, it also can be installed quickly, since the installation is low-maintenance and can be performed without screw connections.
The WINSTA Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, more reliable, and error-free. Using this pre-assembled system decreases assembly times and installation errors at the construction site. Now you can also reduce installation expenses without compromising quality and safety: with protection type IP20, the need for servicing is reduced and unnecessary downtime is prevented.
Features
- Protection against mismating eliminates errors
- Easy tool-free operation, a wide range of coding options
- With B coding for use in automation of processes, such as lighting technology
- Custom-engineered solutions
- Rapid, structured electrical installation
Power switch available | No | |
Rated current IEC | 16 A | |
Design | straight | |
Line filter present | No | |
Rated voltage UL/CSA | 600 V | |
Fuse holder present | No | |
Pin number | 2 pole | |
Connection | push-in | |
Type of locking | Yes | |
Colour | light green | |
Rated voltage IEC | 250 V | |
Rated current UL/CSA | 14 A | |
Cable cross-section | 1.5 mm² | |
Version | socket | |
Switch illuminated | No |
Customs tariff number | 85366990 |
Country of origin | PL |
SVHC free | No |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
