890-255/062-000 | WAGO

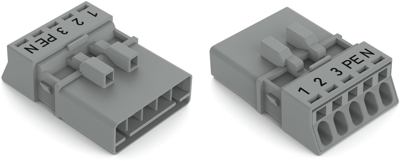

Plug, 5 pole, push-in, 0.25-1.5 mm², gray, 890-255/062-000
Unit Price (€ / pc.)
4.3554 € *
Standard delivery time from the manufacturer is: 4 Weeks
Plug, 890-255/062-000, WAGO
The 890-255/062-000 is a connector/plug that is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to make connections according to an enormous variety of requirements in next to no time.
Features
- Protection against mismating
- Quick replacement of defective units during ongoing operation
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Applications
- For power transmission
- For signal transmission
- For lighting applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Rated voltage IEC | 400 V | |
| Pin number | 5 pole | |
| Colour | gray | |
| Rated current UL/CSA | 12 A | |
| Cable cross-section | 0.25-1.5 mm² | |
| Connection | push-in | |
| Pin temperature | 85 °C | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Type of locking | Yes | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
