890-255/060-000 | WAGO

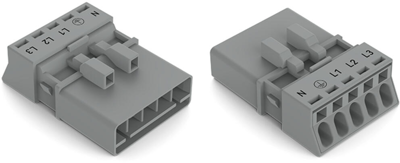

Plug, 5 pole, push-in, 1.5 mm², gray, 890-255/060-000
Male connector, 890-255/060-000, WAGO
With the WINSTA MINI male connector/plug with protection type IP20, the pluggable installation connectors with spring pressure connection technology work completely without screw connections. They allow flexible, error-free installation in numerous possible uses. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. Thanks to its particularly small dimensions, the WINSTA MINI Pluggable Connection System with Push-in CAGE CLAMP spring pressure connection technology is especially suitable in very tight spaces.
The WINSTA Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, more reliable, and error-free. Use of this pre-assembled system decreases time spent on assembly and errors during installation at the construction site.
Features
- Protection against mismating eliminates errors
- Easy tool-free operation, a wide range of coding options
- With B coding for use in automation of processes, such as lighting technology
- Ready to install and use immediately
- Quick replacement of defective units during ongoing operation
| Filter | Property | Value |
|---|---|---|
| Connection | push-in | |
| Product type | plug | |
| Rated voltage IEC | 400 V | |
| Pin number | 5 pole | |
| Line filter present | No | |
| Power switch available | No | |
| Cable cross-section | 1.5 mm² | |
| Rated current UL/CSA | 12 A | |
| Rated voltage UL/CSA | 600 V | |
| Type of locking | Yes | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Colour | gray | |
| Switch illuminated | No | |
| Fuse holder present | No |
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
