890-253 | WAGO

Plug, 3 pole, push-in, 0.25-1.5 mm², gray, 890-253

Order No.: 45P2907
EAN: 4055143499859
MPN:
890-253
Series: WINSTA MINI

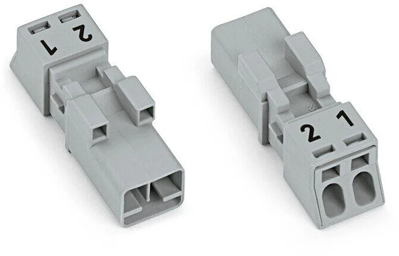

890-253 WAGO Device Connectors Image 1
890-253 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.1650 € *
Available: 47 pcs.
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1650 €
10 pcs.
3.8318 €
50 pcs.
3.4867 €
100 pcs.
3.1416 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, 890-253, WAGO

Plug, 3-pole, 1.50 mm², gray.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour gray
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 14 A
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Rated voltage IEC 250 V
Cable cross-section 0.25-1.5 mm²
Pin number 3 pole
Version plug
Design straight
Connection push-in
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
