890-253/060-000 | WAGO

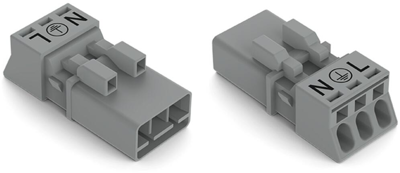

Plug, 3 pole, push-in, 1.5 mm², gray, 890-253/060-000
Male connector, 890-253/060-000, WAGO
The WINSTA MINI male connector/plug with protection type IP20 supports rapid, correct installation. On PCBs, in control cabinets, or for connecting lights - pluggable installation connectors from WAGO allow you to make connections according to many different requirements in next to no time. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. Pluggable installation connectors with B coding from the WINSTA MINI line are available in pink, light green, or gray, allowing you to distinguish different circuits, for example, for light, pumps, or sun blinds. Your own pole marking is possible as well.
Due to its particularly small dimensions, the WINSTA MINI Pluggable Connection System with Push-in CAGE CLAMP spring pressure connection technology is especially suitable in very tight spaces. The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Take advantage of the pluggable version of the maintenance-free spring pressure connection technology too!
Features
- Protection against mismating eliminates errors
- Consistent IP40 protection
- For automation controllers
- Custom-engineered solutions
- Rapid, structured electrical installation
| Filter | Property | Value |
|---|---|---|
| Connection | push-in | |
| Product type | plug | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Line filter present | No | |
| Power switch available | No | |
| Cable cross-section | 1.5 mm² | |
| Rated current UL/CSA | 14 A | |
| Rated voltage UL/CSA | 600 V | |
| Type of locking | Yes | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Colour | gray | |
| Switch illuminated | No | |
| Fuse holder present | No |
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
