890-252 | WAGO

Plug, 2 pole, push-in, 0.25-1.5 mm², gray, 890-252

Order No.: 43P2686
EAN: 4045454315481
MPN:
890-252
Series: WINSTA MINI

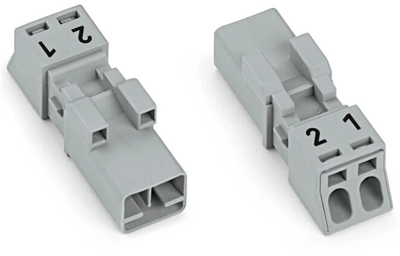

890-252 WAGO Device Connectors Image 1
890-252 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.6775 € *
Available: 49 pcs.
Total Price:
2.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.6775 €

Plug, 890-252, WAGO

The 890-252 is a connector/plug that supports fast reliable installation on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to establish connections according to various requirements in seconds.

Features

  • Protection against mismating
  • Easy tool-free operation
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For automation controllers
  • For robotic applications
Technical specifications
Filter Property Value
Rated voltage IEC 250 V
Pin temperature 85 °C
Colour gray
Rated voltage UL/CSA 600 V
Rated current UL/CSA 14 A
Design straight
Connection push-in
Product type plug
Pin number 2 pole
Type of locking Yes
Rated current IEC 16 A
Cable cross-section 0.25-1.5 mm²
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
