890-245 | WAGO

Socket, 5 pole, push-in, 1.5 mm², gray, 890-245

Order No.: 45P8125
EAN: 4055143499774
MPN:
890-245
Series: WINSTA MINI

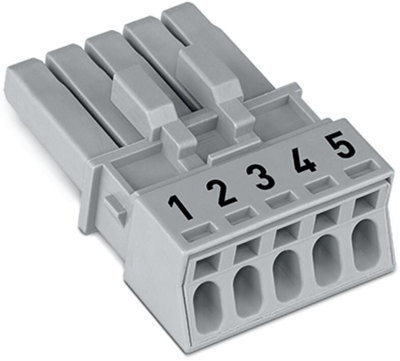

890-245 WAGO Device Connectors Image 1

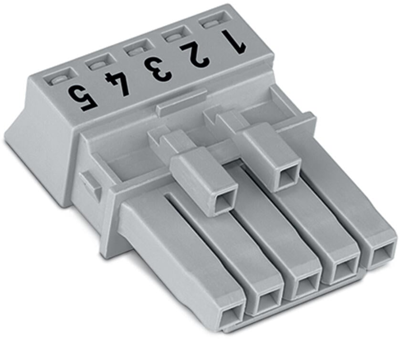

890-245 WAGO Device Connectors Image 2

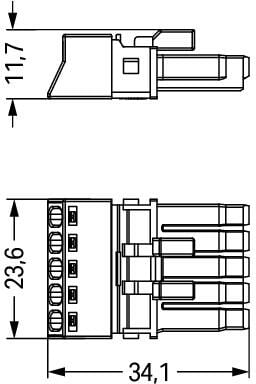

890-245 WAGO Device Connectors Image 3

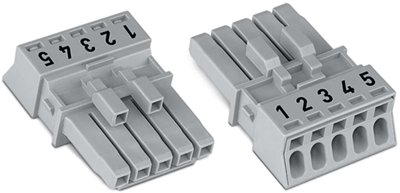

890-245 WAGO Device Connectors Image 4
Image may differ
Unit Price (€ / pc.)
7.1162 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.12 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1162 €
10 pcs.
6.6164 €
50 pcs.
6.0214 €
100 pcs.
5.4859 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, 890-245, WAGO

The WINSTA MINI female connector/socket with protection against mismating supports rapid, correct installation. WAGO pluggable installation connectors are used when requirements repeat or are planned on a specific pattern, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, secure wiring of all components. Solutions like the WINSTA MINI pluggable installation connectors with B coding are appropriate for applications related to process control, for example, for lighting or within data networks. WINSTA MINI, consistently displays its advantageous properties. It saves space, and, thanks to Push-in CAGE CLAMP spring pressure connection technology, it additionally can be installed quickly, since the connection is low-maintenance and requires no screw connections.

The WINSTA Pluggable Connection System is ideally tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and thus more efficient, even more reliable, and error-free. Using this pre-assembled system decreases assembly times and installation errors at the construction site.

Features

  • Protection against mismating eliminates errors
  • Easy tool-free operation, a wide range of coding options
  • With B coding for controllers such as lighting fixtures and sun blinds
  • Exact dimensions
  • Rapid, structured electrical installation
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Connection push-in
Rated voltage IEC 400 V
Colour gray
Fuse holder present No
Power switch available No
Pin number 5 pole
Switch illuminated No
Type of locking Yes
Design straight
Product type socket
Cable cross-section 1.5 mm²
Rated current UL/CSA 12 A
Line filter present No
Rated current IEC 16 A
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
