890-245/060-000 | WAGO

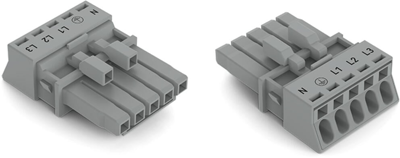

Socket, 5 pole, push-in, 1.5 mm², gray, 890-245/060-000
Female connector, 890-245/060-000, WAGO
The WINSTA MINI female connector/socket rated current 16 A supports fast, reliable installation. Whether on PCBs, in control cabinets, or for connecting lights - pluggable installation connectors from WAGO allow you to make connections according to many different requirements in next to no time. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. B coding enables the WINSTA MINI pluggable installation connectors to be used for application control in the domains of automation, robotics, and mechanical engineering. WINSTA MINI, consistently displays its strengths. It saves space, and, thanks to Push-in CAGE CLAMP spring pressure connection technology, it additionally saves time, since the connection is low-maintenance and requires no screw connections.
WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures fast, secure, and, above all, error-free installation of components and cables. Now you can also cut installation expenses without compromising safety and quality: with protection against mismating eliminating the need for servicing and preventing unnecessary downtime.
Features
- Protection against mismating eliminates errors
- Easy tool-free operation, a wide range of coding options
- With B coding for use in automation of processes, such as lighting technology
- Flexible installation to save space
- Convenient installation and commissioning
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Connection | push-in | |
| Rated voltage IEC | 400 V | |
| Colour | gray | |
| Fuse holder present | No | |
| Power switch available | No | |
| Pin number | 5 pole | |
| Switch illuminated | No | |
| Type of locking | Yes | |
| Design | straight | |
| Product type | socket | |
| Cable cross-section | 1.5 mm² | |
| Rated current UL/CSA | 12 A | |
| Line filter present | No | |
| Rated current IEC | 16 A |
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
