890-244 | WAGO

Socket, 4 pole, push-in, 1.5 mm², gray, 890-244

Order No.: 45P8124
EAN: 4055143523592
MPN:
890-244
Series: WINSTA MINI

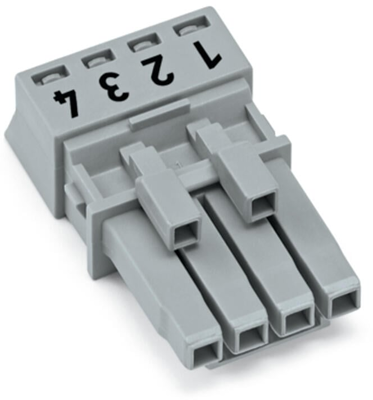

890-244 WAGO Device Connectors Image 1

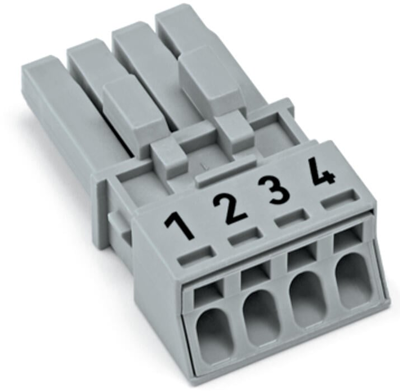

890-244 WAGO Device Connectors Image 2

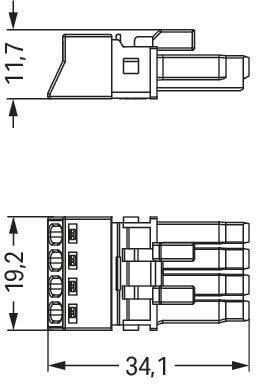

890-244 WAGO Device Connectors Image 3

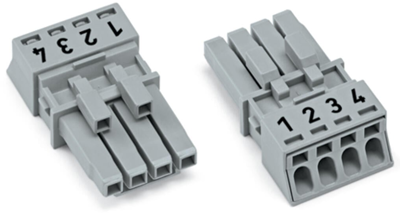

890-244 WAGO Device Connectors Image 4
Image may differ
Unit Price (€ / pc.)
6.1880 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1880 €
10 pcs.
5.6882 €
50 pcs.
5.1884 €
100 pcs.
4.6648 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female connector, 890-244, WAGO

The WINSTA MINI female connector/socket B coding allows assembly of solid and fine-stranded conductors. WAGO pluggable installation connectors can be used when criteria repeat or are distributed on a defined grid, for example, for installing grid lighting or flush-mount lighting. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. Pluggable installation connectors with B coding from the WINSTA MINI line are available in gray, light green, or pink, allowing you to distinguish different circuits, for example, for pumps, lighting, or sun blinds. Customer-specific pole marking is possible as well.

Due to its particularly minimal dimensions, the WINSTA MINI Pluggable Connection System with Push-in CAGE CLAMP spring pressure connection technology is specifically suitable in very tight spaces. The WINSTA Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and consequently more efficient, more reliable, and error-free. Using this pre-assembled system reduces time spent on assembly and installation errors at the construction site.

Features

  • Effective protection against mismating
  • Easy tool-free operation, a wide range of coding options
  • For automation controllers
  • Custom-engineered solutions
  • Convenient installation and commissioning
Technical specifications
Connection Push-in
Version Buchse
Design gerade
Colour grau
Cable cross-section 1,5 mm²
Rated voltage IEC 400 V
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Rated current UL/CSA 12 A
Line filter present No
Switch illuminated No
Power switch available No
Pin number 4-polig
Fuse holder present No
Type of locking Ja
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
