890-243/062-000 | WAGO
Socket, 3 pole, push-in, 1.5 mm², gray, 890-243/062-000

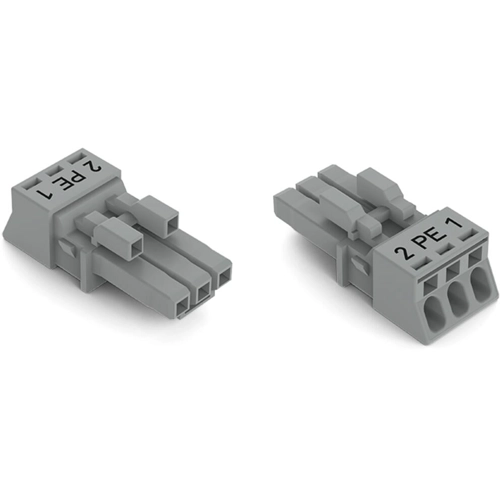

Female connector, 890-243/062-000, WAGO
The WINSTA MINI female connector/socket B coding provides the foundation for installation of fine-stranded and solid conductors. The pluggable installation connectors with spring pressure connection technology work completely without screw connections. They allow fast, efficient, error-free installation in a large number of applications. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. B coding enables the WINSTA MINI pluggable installation connectors to be used for application control in automation, robotics, and mechanical engineering.
Thanks to its particularly minimal dimensions, the WINSTA MINI Pluggable Connection System with Push-in CAGE CLAMP spring pressure connection technology is especially suitable in very restricted spaces. WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too!
Features
- Protection against mismating eliminates errors
- Compact design for conductors with a cross-section up to 1.5 mm²
- With B coding for controllers such as lighting fixtures and sun blinds
- Ready to install and use immediately
- Fast, secure installation
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 16 A | |
| Rated voltage UL/CSA | 600 V | |
| Connection | push-in | |
| Rated voltage IEC | 250 V | |
| Switch illuminated | No | |
| Product type | socket | |
| Rated current UL/CSA | 14 A | |
| Type of locking | Yes | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Line filter present | No | |
| Design | straight | |
| Colour | gray | |
| Cable cross-section | 1.5 mm² |
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
