890-243/060-000 | WAGO

Socket, 3 pole, push-in, 1.5 mm², gray, 890-243/060-000

Order No.: 45P8122
EAN: 4055143499880
MPN:
890-243/060-000
Series: WINSTA MINI

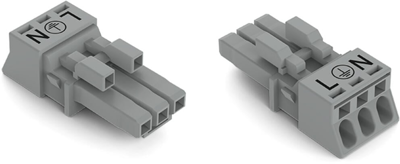

890-243/060-000 WAGO Device Connectors Image 1

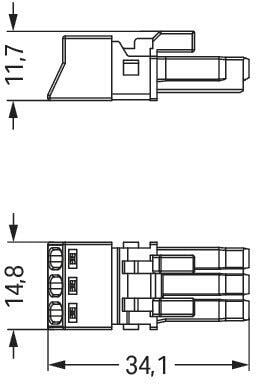

890-243/060-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.2721 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.27 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2721 €
10 pcs.
3.9270 €
50 pcs.
3.5819 €
100 pcs.
3.1416 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, 890-243/060-000, WAGO

The WINSTA MINI female connector/socket B coding allows installation of fine-stranded and solid conductors. On PCBs, in control cabinets, or for connecting lights - pluggable installation connectors from WAGO allow you to make connections according to an enormous variety of requirements in next to no time. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. Pluggable installation connectors with B coding from the WINSTA MINI line are available in gray, light green, or pink, allowing you to distinguish different circuits, for example, for pumps, lighting, or sun blinds. Customer-specific pole marking is possible as well.

Particularly where space is tight, the smallest pluggable connection system, WINSTA MINI, conveniently displays its strengths. It saves space, and, thanks to Push-in CAGE CLAMP spring pressure connection technology, it also saves time, since the connection is low-maintenance and can be performed without screw connections. WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It allows fast, secure, and, above all, error-free installation of components and cables. Now you can also lower installation expenses without compromising quality and safety: with marking eliminating the need for servicing and preventing unnecessary downtime.

Features

  • Effective protection against mismating
  • Easy tool-free operation, a wide range of coding options
  • With B coding for use in process automation, such as lighting technology
  • Custom-engineered solutions
  • Fast, secure installation
Technical specifications
Filter Property Value
Connection push-in
Product type socket
Rated voltage IEC 250 V
Pin number 3 pole
Line filter present No
Power switch available No
Cable cross-section 1.5 mm²
Rated current UL/CSA 14 A
Rated voltage UL/CSA 600 V
Type of locking Yes
Design straight
Rated current IEC 16 A
Colour gray
Switch illuminated No
Fuse holder present No
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
