890-242/060-000 | WAGO

Socket, 2 pole, push-in, 1.5 mm², gray, 890-242/060-000

Order No.: 45P8121
EAN: 4055143499620
MPN:
890-242/060-000
Series: WINSTA MINI

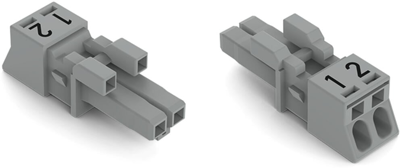

890-242/060-000 WAGO Device Connectors Image 1
890-242/060-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.8199 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.82 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8199 €
10 pcs.
3.5105 €
50 pcs.
3.1654 €
100 pcs.
2.7846 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, 890-242/060-000, WAGO

The WINSTA MINI female connector/socket with protection against mismating. On PCBs, in control cabinets, or for connecting lights - pluggable installation connectors from WAGO allow you to establish connections according to a huge variety of requirements in no time flat. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. Solutions like the WINSTA MINI pluggable installation connectors with B coding are suitable for applications related to process control, for example, for lighting or in data networks.

WINSTA MINI is the response to the trend toward miniaturization. The smallest pluggable connection system is especially suitable for lights, for instance, since due to LED technology, these offer less and less space for the connection technology. WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It allows fast, secure, and, above all, error-free installation of components and cables.

Features

  • Protection against mismating eliminates errors
  • Easy tool-free operation, a wide range of coding options
  • With B coding for controllers such as lighting fixtures and sun blinds

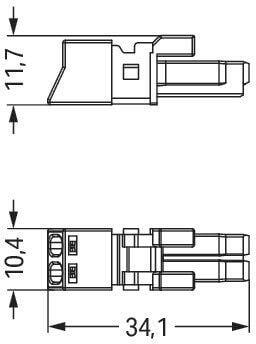

  • Exact dimensions
  • Convenient installation and commissioning
Technical specifications
Filter Property Value
Connection push-in
Product type socket
Rated voltage IEC 250 V
Pin number 2 pole
Line filter present No
Power switch available No
Cable cross-section 1.5 mm²
Rated current UL/CSA 14 A
Rated voltage UL/CSA 600 V
Type of locking Yes
Design straight
Rated current IEC 16 A
Colour gray
Switch illuminated No
Fuse holder present No
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
