890-215 | WAGO

Plug, 5 pole, snap-in, push-in, 0.25-1.5 mm², gray, 890-215

Order No.: 43P2678
EAN: 4045454233150
MPN:
890-215
Series: WINSTA MINI

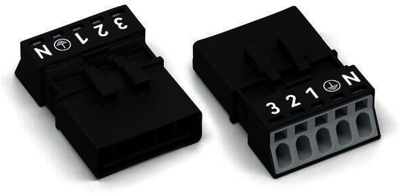

890-215 WAGO Device Connectors Image 1

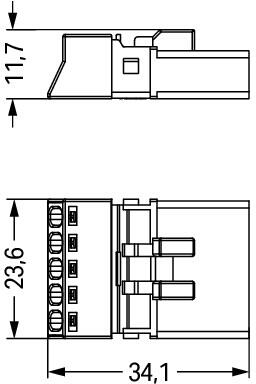

890-215 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.9032 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.9032 €

Plug, 890-215, WAGO

The 890-215 is a connector/plug that supports fast, reliable installation and it is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to establish connections according to an enormous variety of requirements in next to no time.

Features

  • Protection against mismating
  • Convenient installation and commissioning
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Assembly snap-in
Rated voltage UL/CSA 600 V
Rated current UL/CSA 12 A
Cable cross-section 0.25-1.5 mm²
Pin temperature 85 °C
Design straight
Colour gray
Pin number 5 pole
Rated voltage IEC 400 V
Product type plug
Rated current IEC 13 A
Type of locking Yes
Connection push-in
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
