890-212 | WAGO

Plug, 2 pole, push-in, 0.25-1.5 mm², black, 890-212

Order No.: 43P2674
EAN: 4045454233129
MPN:
890-212
Series: WINSTA MINI

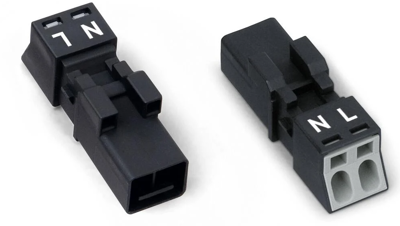

890-212 WAGO Device Connectors Image 1
890-212 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.3443 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.3443 €

Plug, 890-212, WAGO

The 890-212 is a male connector/plug with protection type IP20 provides the foundation for assembly of solid and fine-stranded conductors.

Features

  • Protection against mismating
  • Quick replacement of defective units during ongoing operation
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Colour black
Rated current UL/CSA 14 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
