890-212/342-000 | WAGO

Plug, 2 pole, push-in, 0.25-1.5 mm², black, 890-212/342-000

Order No.: 45P2896
EAN: 4055143463638
MPN:
890-212/342-000
Series: WINSTA MINI

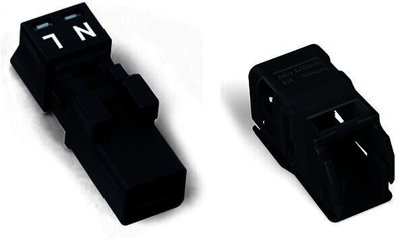

890-212/342-000 WAGO Device Connectors Image 1

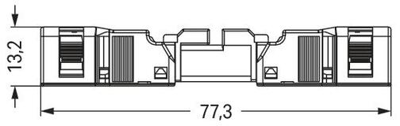

890-212/342-000 WAGO Device Connectors Image 2

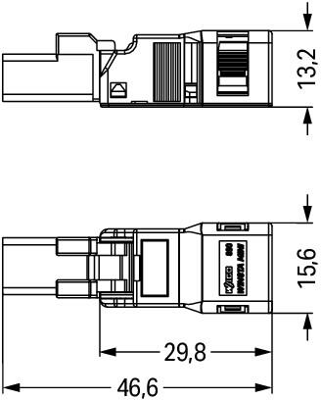

890-212/342-000 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.1888 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.1888 €

Plug, 890-212/342-000, WAGO

The 890-212/342-000 is a male connector/plug that is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to establish connections according to an enormous variety of requirements in seconds.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Colour black
Rated current UL/CSA 14 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
