890-2115 | WAGO
Plug, 5 pole, snap-in, push-in, 0.25-1.5 mm², blue, 890-2115
Unit Price (€ / pc.)
4.6648 € *
Standard delivery time from the manufacturer is: 4 Weeks

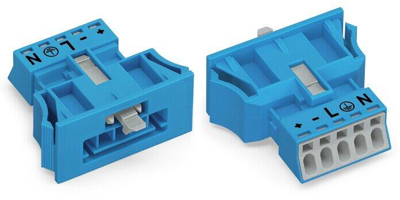

Plug, 890-2115, WAGO
Snap-in plug, 5-pole, code I, 1.50 mm², blue.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 400 V | |
| Pin temperature | 85 °C | |
| Colour | blue | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 600 V | |
| Rated current UL/CSA | 12 A | |
| Design | straight | |
| Connection | push-in | |
| Product type | plug | |
| Pin number | 5 pole | |
| Type of locking | Yes | |
| Rated current IEC | 16 A | |
| Cable cross-section | 0.25-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
