890-2105/006-000 | WAGO

Socket, 5 pole, snap-in, push-in, 0.25-1.5 mm², gray, 890-2105/006-000

Order No.: 45P2892
EAN: 4050821312284
MPN:
890-2105/006-000
Series: WINSTA MINI

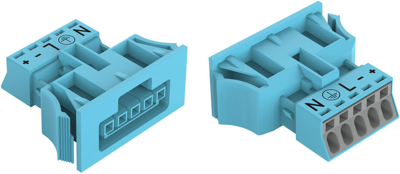

890-2105/006-000 WAGO Device Connectors Image 1

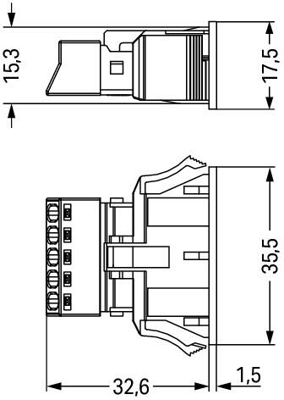

890-2105/006-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.2598 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.2598 €

Socket, 890-2105/006-000, WAGO

The 890-2105/006-000 is a female connector/socket, this pluggable installation connector with spring pressure connection technology works entirely without screw connections.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Colour gray
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 12 A
Assembly snap-in
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Rated voltage IEC 400 V
Cable cross-section 0.25-1.5 mm²
Pin number 5 pole
Version socket
Design straight
Connection push-in
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
