890-202/342-000 | WAGO

Socket, 2 pole, push-in, 0.25-1.5 mm², black, 890-202/342-000

Order No.: 45P2890
EAN: 4055143463652
MPN:
890-202/342-000
Series: WINSTA MINI

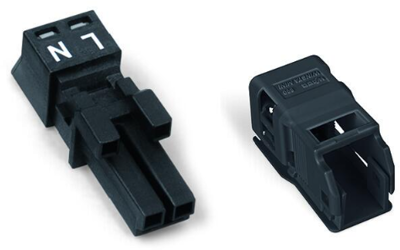

890-202/342-000 WAGO Device Connectors Image 1

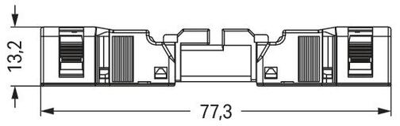

890-202/342-000 WAGO Device Connectors Image 2

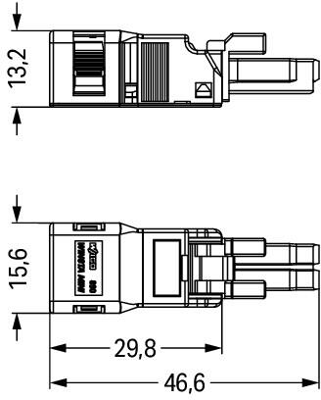

890-202/342-000 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
3.8318 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8318 €

Socket, 890-202/342-000, WAGO

Socket with strain relief housing, 2-pole, code A, 1.50 mm², black.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Rated voltage IEC 250 V
Connection push-in
Rated current UL/CSA 14 A
Pin number 2 pole
Type of locking Yes
Cable cross-section 0.25-1.5 mm²
Pin temperature 85 °C
Colour black
Version socket
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Design straight
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
