890-1634 | WAGO

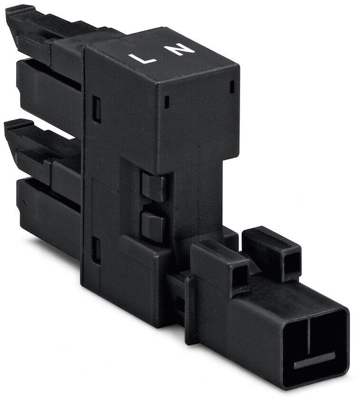

H-distributor, 2 pole, black, 890-1634

Order No.: 45P2865
EAN: 4045454376383
MPN:
890-1634
Series: WINSTA MINI
890-1634 WAGO Device Connectors Image 1
890-1634 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.2594 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.2594 €

H-distributor, 890-1634, WAGO

H-distribution connector, 2-pole, code A, 1 input, 2 outputs, outputs on one side, 2 locking levers, black.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour black
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 14 A
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Rated voltage IEC 250 V
Pin number 2 pole
Version H-distributor
Design straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
