890-1631 | WAGO
T connector, 4 pole, gray, 890-1631
Unit Price (€ / pc.)
8.4014 € *
Standard delivery time from the manufacturer is: 5 Weeks

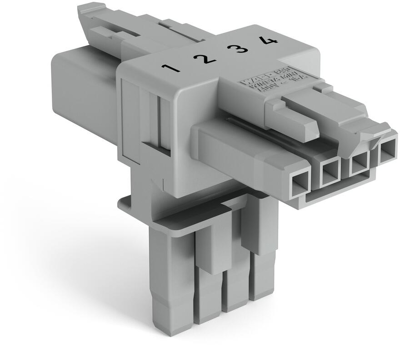

T-distributor, 890-1631, WAGO
T-distribution connector, 4-pole, code B, 1 input, 2 outputs, 2 locking levers, gray.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 400 V | |
| Pin temperature | 85 °C | |
| Colour | gray | |
| Rated voltage UL/CSA | 600 V | |
| Rated current UL/CSA | 12 A | |
| Design | T-shape | |
| Product type | T distributor | |
| Pin number | 4 pole | |
| Type of locking | Yes | |
| Rated current IEC | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
