890-132 | WAGO

Plug, 2 pole, cable assembly, push-in, 0.25-1.5 mm², white, 890-132

Order No.: 43P2654
EAN: 4045454233006
MPN:
890-132
Series: WINSTA MINI

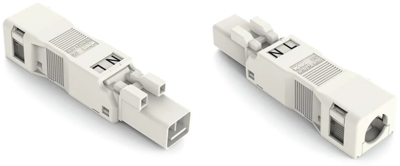

890-132 WAGO Device Connectors Image 1
890-132 WAGO Device Connectors Image 2
890-132 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.0341 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.0341 €

Plug, 890-132, WAGO

The 890-132 is a male connector/plug with protection against mismating and it is a pluggable solution for your use in control cabinets, on PCBs or for lighting connections.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Colour white
Pin temperature 85 °C
Cable diameter 3.8 to 8.2 mm
Type of locking Yes
Rated current UL/CSA 14 A
Assembly cable assembly
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Rated voltage IEC 250 V
Cable cross-section 0.25-1.5 mm²
Pin number 2 pole
Version plug
Design straight
Connection push-in
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
