890-122 | WAGO

Socket, 2 pole, cable assembly, push-in, 0.25-1.5 mm², white, 890-122

Order No.: 43P2650
EAN: 4045454232955
MPN:
890-122
Series: WINSTA MINI

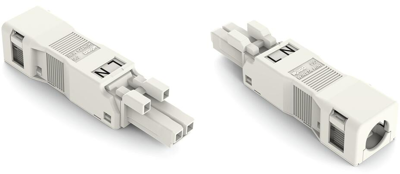

890-122 WAGO Device Connectors Image 1
890-122 WAGO Device Connectors Image 2
890-122 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
3.8199 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.8199 €

Socket, 890-122, WAGO

The 890-122 is a female connector/plug with protection against mismating that supports rapid and correct installation.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Colour white
Rated current UL/CSA 12 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Assembly cable assembly
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Cable diameter 3.8 to 8.2 mm
Type of locking Yes
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
