890-114 | WAGO

Plug, 4 pole, cable assembly, push-in, 0.25-1.5 mm², black, 890-114

Order No.: 46F8304
EAN: 4045454232917
MPN:
890-114
Series: WINSTA MINI
890-114 WAGO Device Connectors Image 1
890-114 WAGO Device Connectors Image 2
890-114 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
7.7112 € *
Available: 42 pcs.
Total Price:
7.71 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7112 €
10 pcs.
7.0924 €
50 pcs.
6.4617 €
100 pcs.
5.8191 €
*incl. VAT plus shipping costs
Subject to prior sale

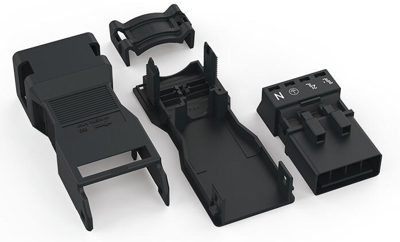

Plug, 890-114, WAGO

Plug, with strain relief housing, 4-pole, 1.50 mm², black.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 400 V
Pin number 4 pole
Colour black
Rated current UL/CSA 12 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Assembly cable assembly
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Cable diameter 6.5 to 10.5 mm
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
