890-113 | WAGO

Plug, 3 pole, cable assembly, push-in, 0.25-1.5 mm², gray, 890-113

Order No.: 46F8302
EAN: 4045454232900
MPN:
890-113
Series: WINSTA MINI
890-113 WAGO Device Connectors Image 1
890-113 WAGO Device Connectors Image 2
890-113 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.4030 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.4030 €

Plug, 890-113, WAGO

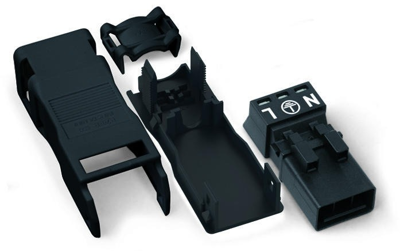

Plug, with strain relief housing, 3-pole, 1.50 mm², black.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Pin number 3 pole
Rated voltage UL/CSA 600 V
Type of locking Yes
Fuse holder present No
Switch illuminated No
Rated current IEC 16 A
Product type plug
Design straight
Pin temperature 85 °C
Colour gray
Rated voltage IEC 250 V
Assembly cable assembly
Power switch available No
Cable cross-section 0.25-1.5 mm²
Connection push-in
Cable diameter 4.5 to 10 mm
Rated current UL/CSA 14 A
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
