890-112 | WAGO

Plug, 2 pole, cable assembly, push-in, 0.25-1.5 mm², gray, 890-112

Order No.: 46F8300
EAN: 4045454232894
MPN:
890-112
Series: WINSTA MINI
890-112 WAGO Device Connectors Image 1
890-112 WAGO Device Connectors Image 2
890-112 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.0341 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.0341 €

Plug, 890-112, WAGO

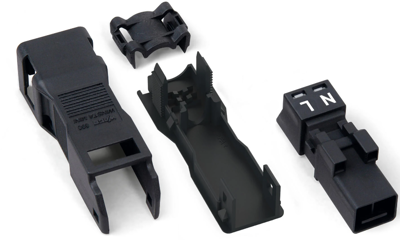

Plug, with strain relief housing, 2-pole, 1.50 mm², black.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Power switch available No
Colour gray
Rated current UL/CSA 14 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Assembly cable assembly
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Cable diameter 3.8 to 8.2 mm
Type of locking Yes
Switch illuminated No
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
