890-1105 | WAGO

Socket, 5 pole, snap-in, push-in, 0.25-1.5 mm², blue, 890-1105

Order No.: 43P2644
EAN: 4045454726737
MPN:
890-1105
Series: WINSTA MINI

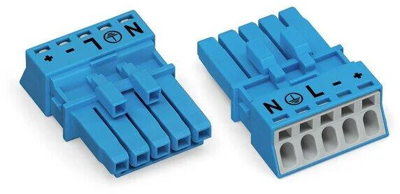

890-1105 WAGO Device Connectors Image 1
890-1105 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.5573 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.5573 €

Socket, 890-1105, WAGO

The 890-1105 is a female connector/socket with protection type IP20 that is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to make connections according to various requirements in seconds.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Connection push-in
Product type socket
Rated voltage IEC 400 V
Pin number 5 pole
Cable cross-section 0.25-1.5 mm²
Rated current UL/CSA 12 A
Assembly snap-in
Rated voltage UL/CSA 600 V
Type of locking Yes
Design straight
Rated current IEC 16 A
Colour blue
Pin temperature 85 °C
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
