890-1102 | WAGO

Socket, 2 pole, snap-in, push-in, 0.25-1.5 mm², blue, 890-1102

Order No.: 43P2642
EAN: 4045454548124
MPN:
890-1102
Series: WINSTA MINI

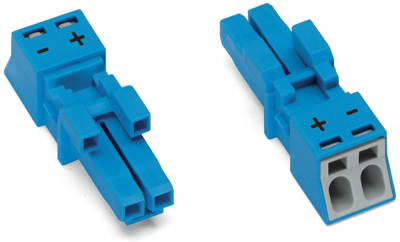

890-1102 WAGO Device Connectors Image 1
890-1102 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.1416 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.1416 €

Socket, 890-1102, WAGO

The 890-1102 is a female connector/socket that supports fast and reliable installation. This pluggable installation connector can be used when criteria repeat or are distributed on a specific grid.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Colour blue
Rated current UL/CSA 14 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Assembly snap-in
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Type of locking Yes
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
